Wholesale KLT-C Series 2ton-3ton Electric Pallet Truck EPS Manufacturers, Factory

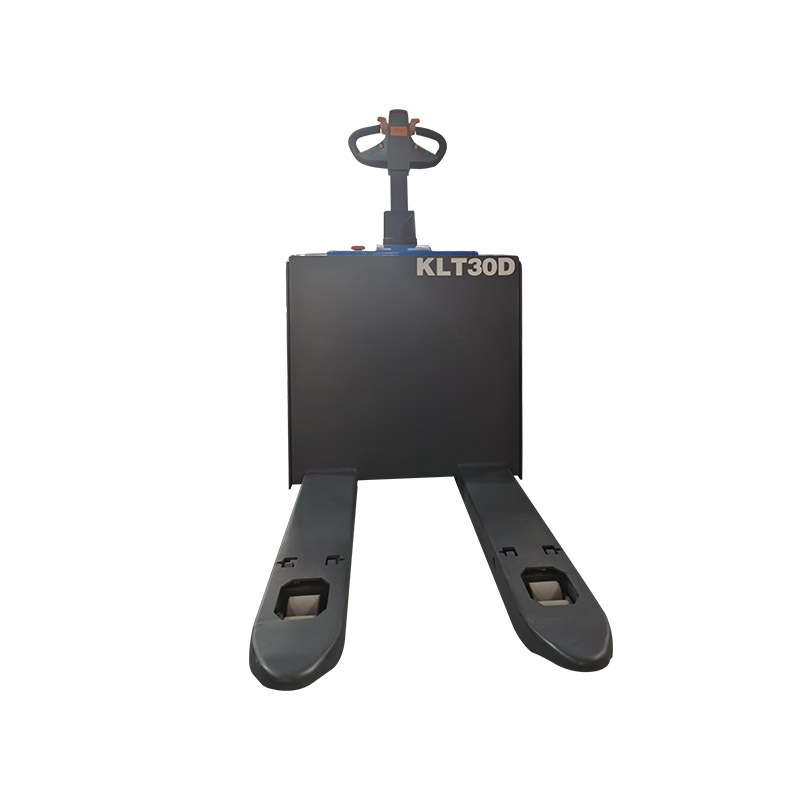

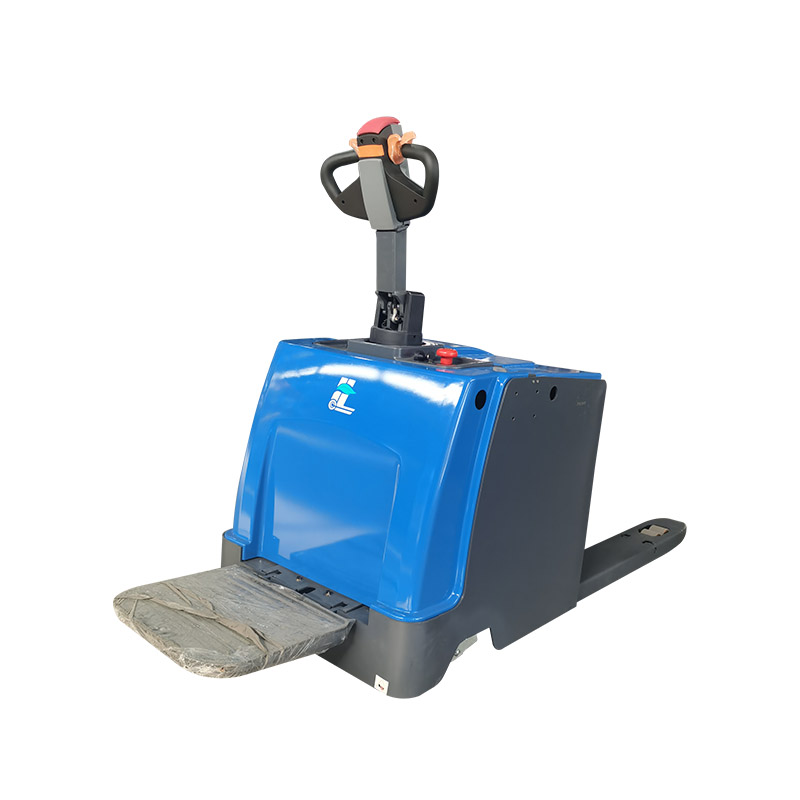

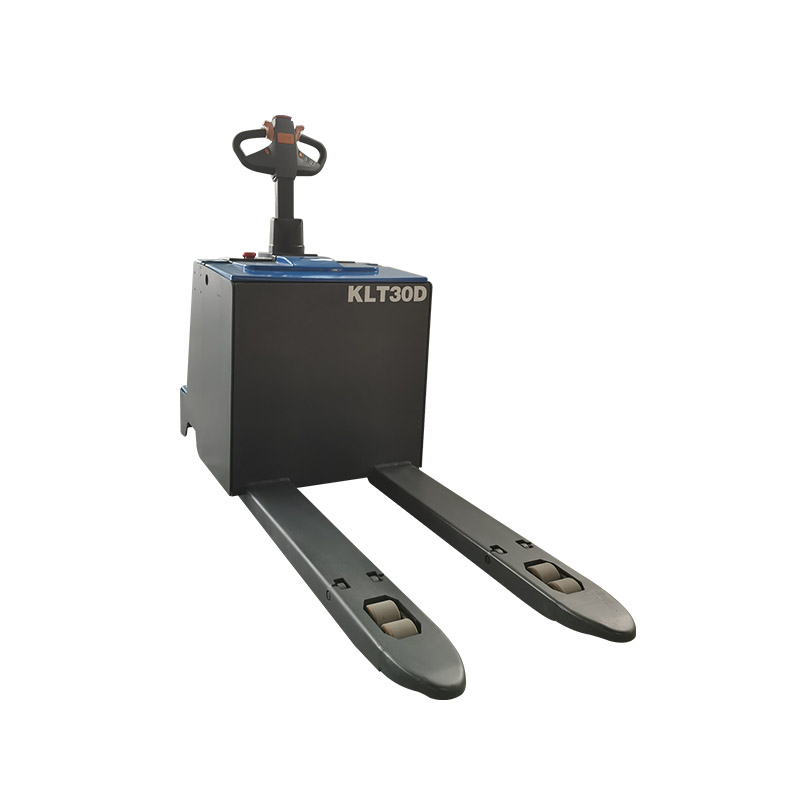

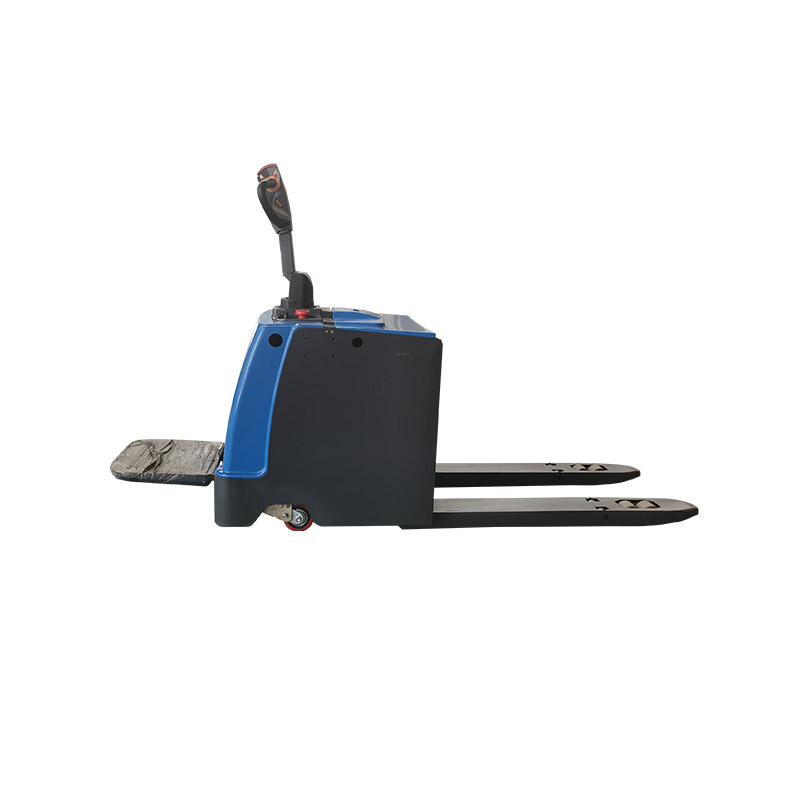

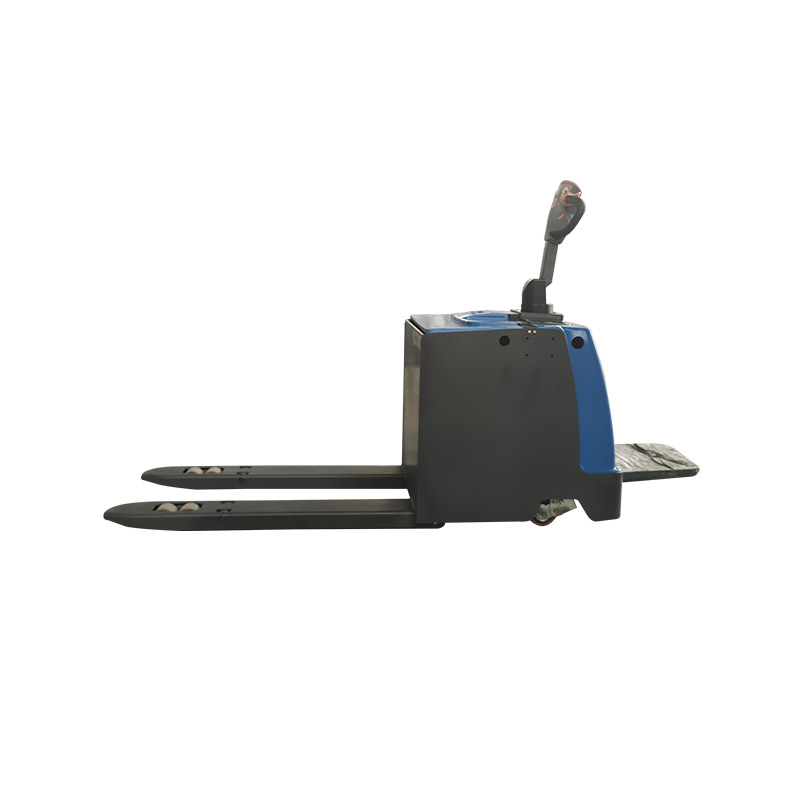

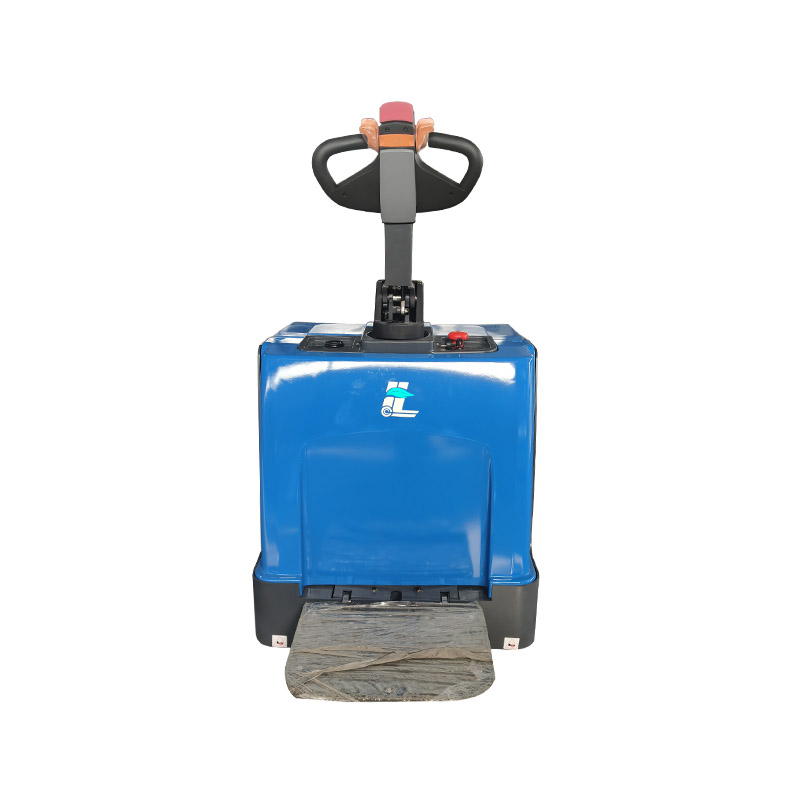

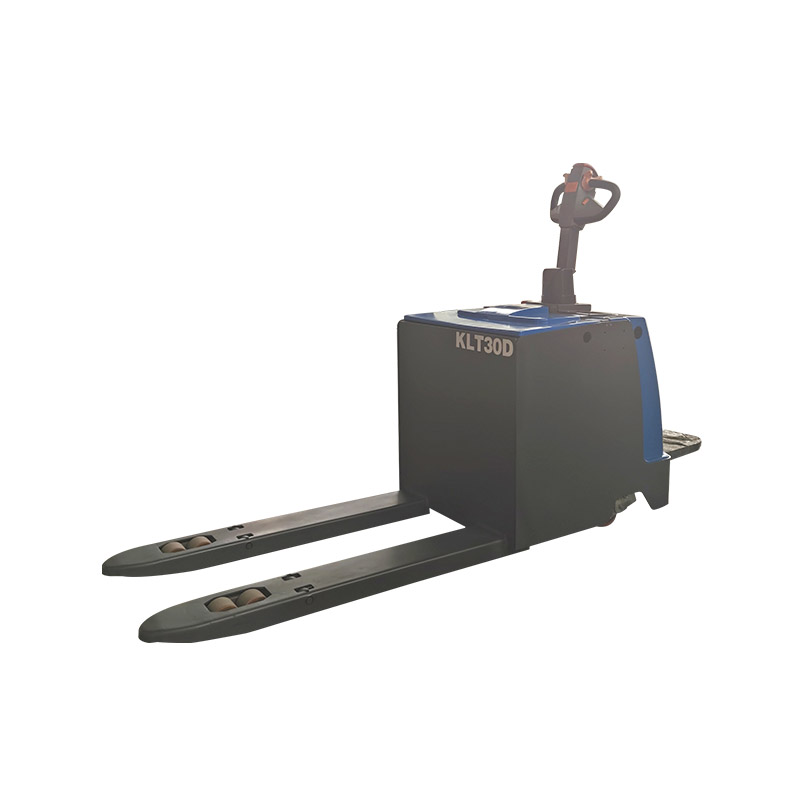

KLT-C Series 2ton-3ton Electric Pallet Truck EPS

Brief Introduction of Product:

The motorised pallet truck is a modern invention that has revolutionised the way goods are transported. It is a reliable and efficient way to move large loads around warehouses and factories. The truck can carry a large amount of cargo and can be easy to manoeuvre.

◎ EPS steering system lessens the steering force, increasing the sensitivity, improving the performance of steering reversal, so the vehicle slows down automatically on the curve and be easy and safe to operate.

◎ AC motor of vertical drive is no carbon brush, having better startability on the ramp plus regenerative braking, which effectively increases the work efficiency and service duration of electric motor plus more energy-saving.

◎ Configured with KINLIFT controller, ALBRIGHT contactor, water-proof AMP connector assembly of power supply.

◎ With peculiar technology of shock absorption of drive, which enables the traffic-ability more superior.

◎ Two oil cylinders are equipped to implement the synchronized lifting function, additionally cut off power supply automatically at the top lifting height.

◎ Driven on a stand-up platform that is with shock absorption.

Optional Configuration:

◎ Special configuration for refrigerated storage

◎ Non-standard forks

◎ High-capacity battery 300 AH

◎ Non-standard design of round material handling is customized

◎ Able-dismantled protective armrest

◎ Li-ion Battery

Get A Quote

Jiangsu Kinlift Equipment Co., Ltd.

Kinlift is China Wholesale KLT-C Series 2ton-3ton Electric Pallet Truck EPS Company and Wholesale KLT-C Series 2ton-3ton Electric Pallet Truck EPS Factory. Kinlift is a professional manufacturer of electric warehousing forklift equipment. It focuses on the research and development, production, and sales of light and small warehousing vehicles, and provides customers with special material handling and stacking optimization solutions. Its products include electric pallet trucks, All-electric stackers, reach electric forklifts, counterbalanced electric forklifts, electric tractors, and picking trucks that can also be customized according to customer requirements. Our users cover manufacturing, logistics, construction, Military industry, medicine, food, chemical industry, electronics, machinery, furniture, textile industry, chemical industry, metallurgy industry, energy industry, and many other industries. Kinlift has set up different corporate departments with excellent human resources plus sophisticated processing equipment, which is the guarantee and foundation for offering the customers all the superior products. The company has passed ISO 9001:2015 Quality Management Certification, and all the products of the electric forklift series have obtained a “ Special Equipment Manufacturing License Certificate”, in addition to possessing several Utility Model Patents issued by China National Intellectual Property Administration. The core values of KINLIFT are “ Quality, Reliable Technology, Sophisticated Management, Marketing of Service. The Credo of KINLIFT: Quality is Power, Service is Evergreen, and Customer is the Future.

Logistics and warehousing solutions:

Solution application: Our warehouse electric forklifts are suitable for various cargo handling, loading, unloading and storage needs in the logistics and warehousing industry. Whether inside the warehouse or in the logistics center, our forklifts can efficiently complete various tasks and improve logistics efficiency. Service advantages: We provide customized solutions, designed and adjusted according to your specific needs and warehousing environment. Our forklifts have excellent maneuverability and flexibility and can adapt to complex warehousing environments.

Retail and wholesale solutions:

Solution application: Our electric warehouse forklifts are suitable for the cargo handling, loading, unloading, and storage needs of the retail industry. Whether inside a warehouse or in a retail store, our forklifts can efficiently complete the loading and unloading of goods, inventory management, and replenishment tasks, improving the efficiency of retail operations. Service advantages: We understand the retail industry's requirements for logistics agility and accuracy, and our forklifts are characterized by quick response and flexible control.

Certificate of Honor

Model				KLT30C
Performance	Maximum load capacity		kg	3000
	load center	Q	mm	600
	Maximum lifting height	H3	mm	120
	Travel speed (without load)		km/h	5.5
	Travel speed (with load)		km/h	5
	Lifting speed (without load)		mm/s	25
	Lifting speed (with load)		mm/s	20
	Lowering speed (without load)		mm/s	25
	Lowering speed (with load)		mm/s	40
	Gradeability (without load )		%	7
	Gradeability (with load )		%	5
	Service Weight (with battery)		kg	680
Dimensions	Overall length of frame	L	mm	1995
	Overall length of frame(with platform)		mm	2414
	Overall width of frame	B	mm	782
	Wheelbase	Y	mm	1465
	Fork length		mm	1150
	Fork outside width	B1	mm	680
	Fork inside width	B2	mm	340
	Fork thickness		mm	65
	Fork height when fork lowered to lowest	S	mm	85
	Min ground clearance		mm	5
	Theoretical width of minimum aisle for right-angle stacking （1200x1000）	Asts	mm	2360
	Minimum turning radius (without platform)	Wa	mm	1770
	Minimum turning radius (with platform)	Wa1	mm	2170
Tire	Front wheel		mm	85*70
	Drive wheel		mm	250*80
	Caster wheel		mm	130*55
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5
	Hoist motor type	DC series motor
	Rated output		kw	1.2
Battery	Voltage		V	24
	Capacity		AH	160
	Weight		kg	150
