Wholesale KLD-EA.EC series 1.6m-4m 2t electric pallet stacker

  • KLD-EA.EC series 1.6m-4m 2t electric pallet stacker
  • KLD-EA.EC series 1.6m-4m 2t electric pallet stacker
  • KLD-EA.EC series 1.6m-4m 2t electric pallet stacker
Electric Pallet Stacker

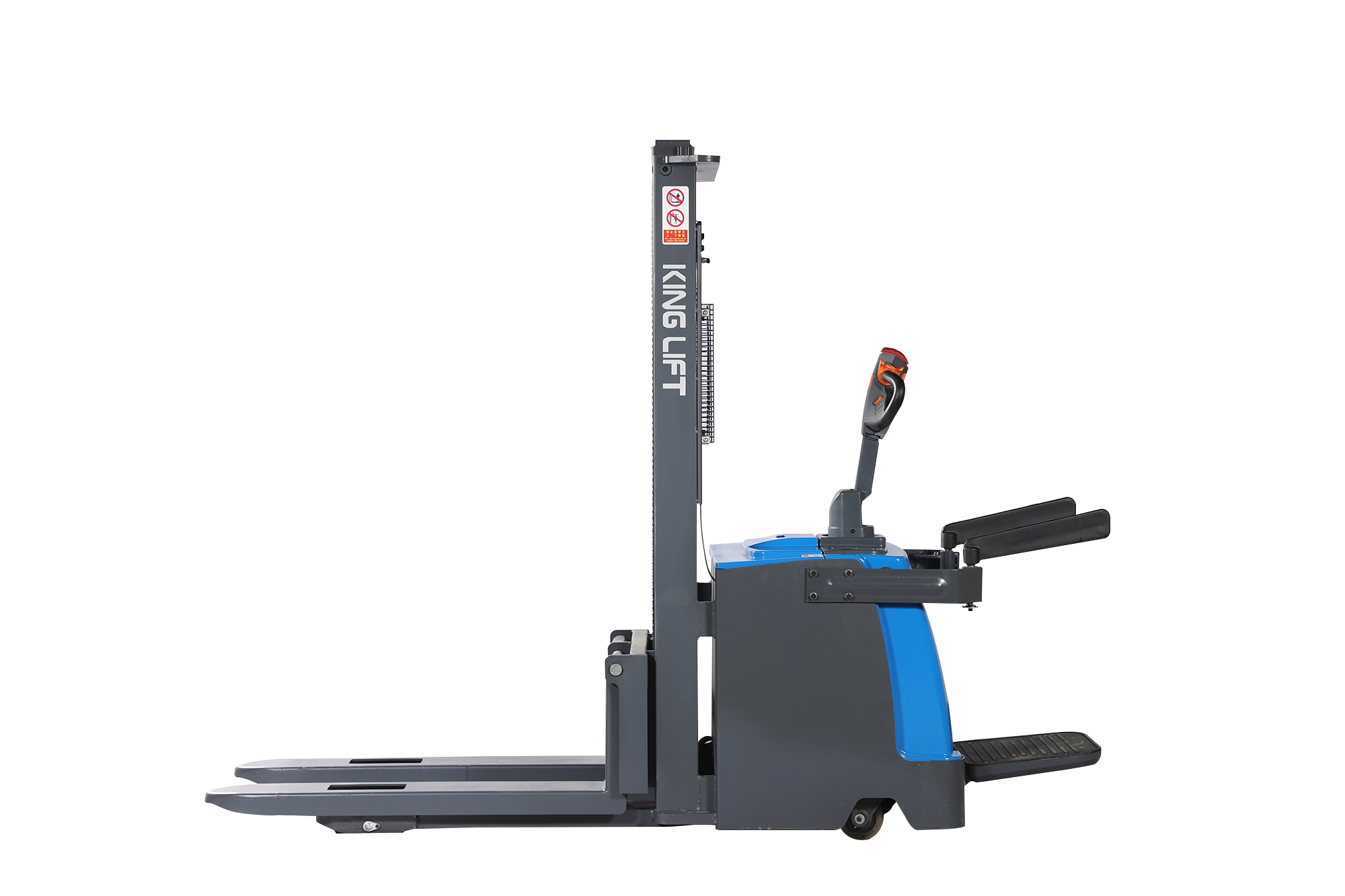

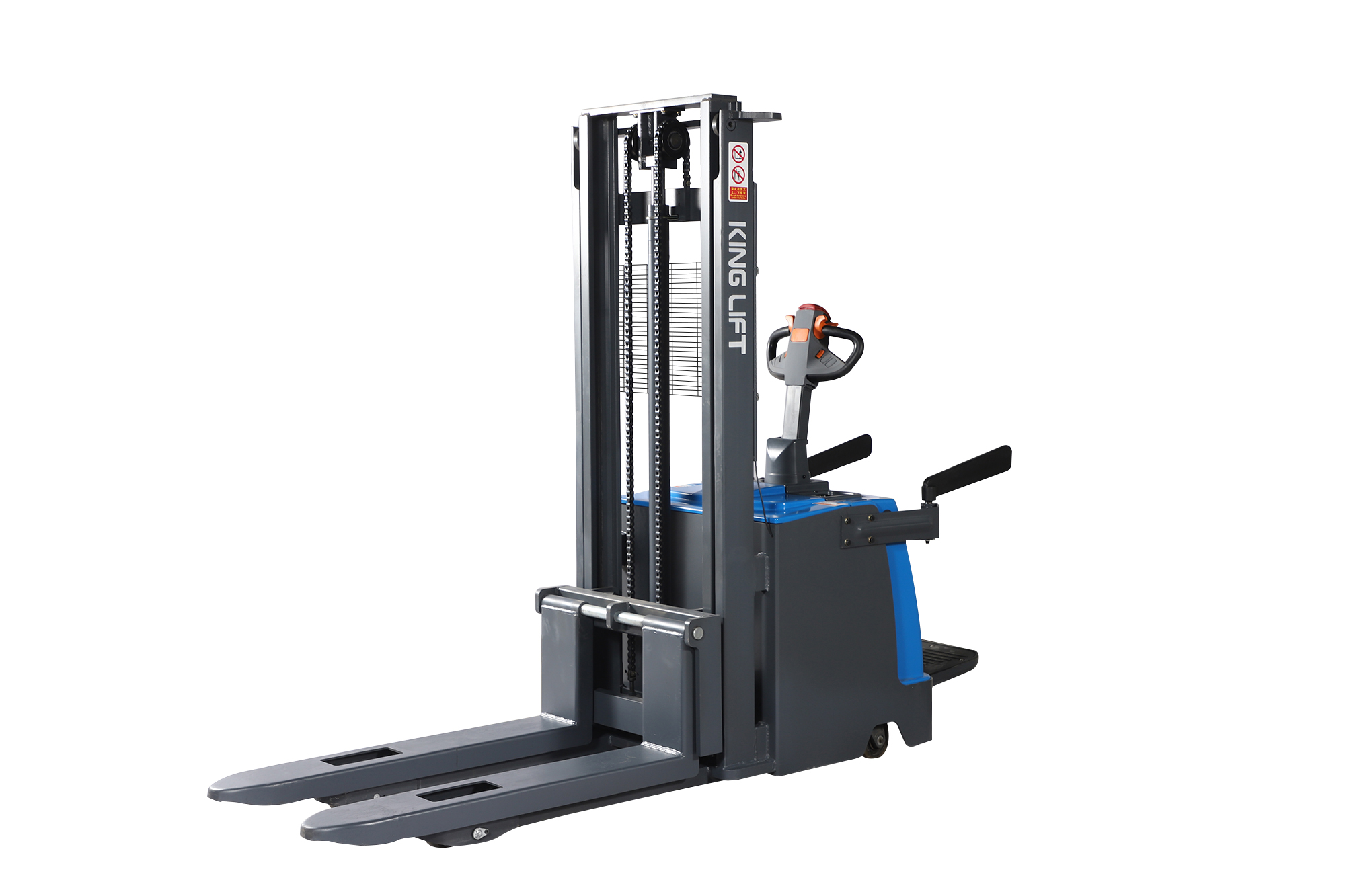

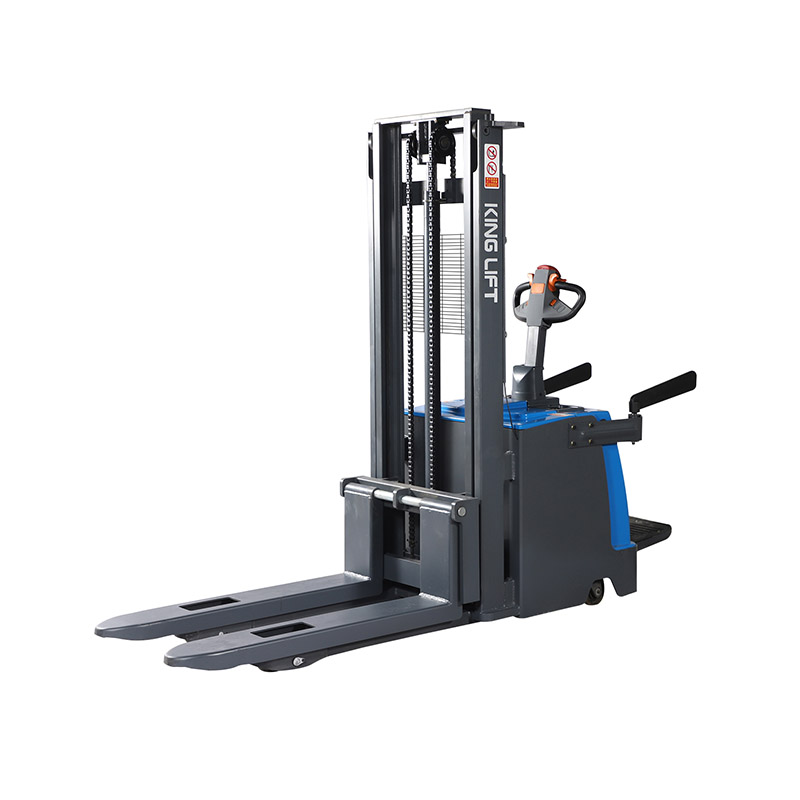

KLD-EA.EC series 1.6m-4m 2t electric pallet stacker

1.Easy wheel replacement with horizontal drive
2.Reinforced mast with precise steel side-rollers for improved stability
3.Safe cargo lifting with national standard 1244 leaf chain
4.Reliable and safe lifting with special sectional steel mast
5.Solid flat iron straddle legs for enhanced safety
6.Shock-absorbing rider platform for comfort
Get A Quote
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLD20EA
Performance Maximum load capacity kg 2000
load center Q mm 600
Maximum lifting height H3 mm 1600
Travel speed (without load) km/h 5.5
Travel speed (with load) km/h 5
Lifting speed (without load) mm/s 121
Lifting speed (with load) mm/s 81
Lowering speed (without load) mm/s 105
Lowering speed (with load) mm/s 103
Gradeability (without load ) % 7
Gradeability (with load ) % 6
Service Weight (with battery) kg 850
Dimensions  Overall length of frame  L mm 2172
Overall length of frame(with platform) mm 2590
Overall width of frame  B mm 854
Overall height when mast lowerd to lowest H1 mm 2090
Overall height when mast lifted to highest H4 mm 2090
Wheelbase Y mm 1420
Fork length mm 1150
Fork outside width B1 mm 680
Fork inside width B2 mm 300
Fork thickness mm 65
Fork height when fork lowered to lowest S mm 90
Min ground clearance  mm 15
Theoretical width of minimum  aisle for right-angle  stacking (1200x1000) Asts mm 2490
Minimum turning radius (without platform) Wa mm 1813
Minimum turning radius (with platform) Wa1 mm 2207
Tire Front wheel mm 85*70
Drive wheel mm 250*80
Caster wheel mm 130*55
Wheel material polyurethane
Electrical components Drive motor type  AC series motor
Rated output kw 1.5
Hoist motor type  DC series motor
Rated output kw 2.2
Battery Voltag V 24
Capacity AH 160
Weight kg 150

Mast type Max fork height Mast lowered       Mast extended
Simplex or Duplex mast   (2Stage)  2000 1480 2460
2500 1730 2960
3000 1980 3460
3500 2230 3960
4000 2480 4460
