Electric Pallet Stacker

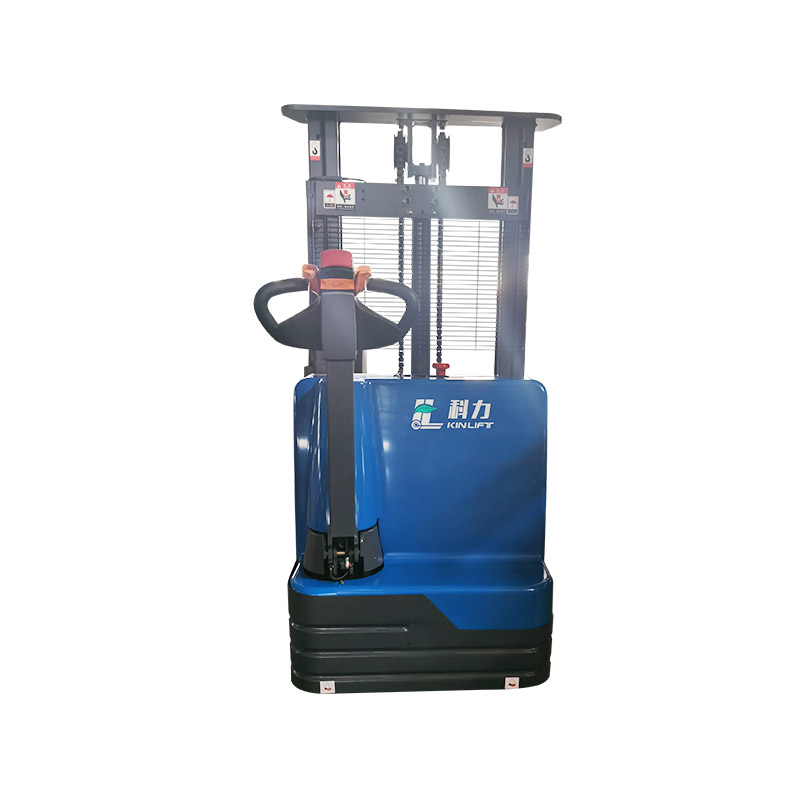

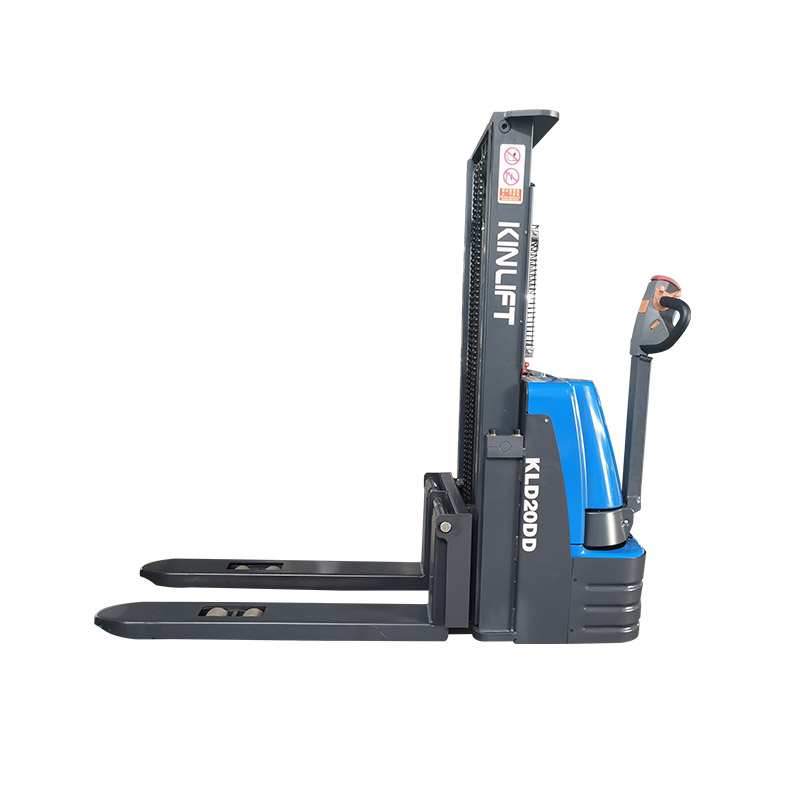

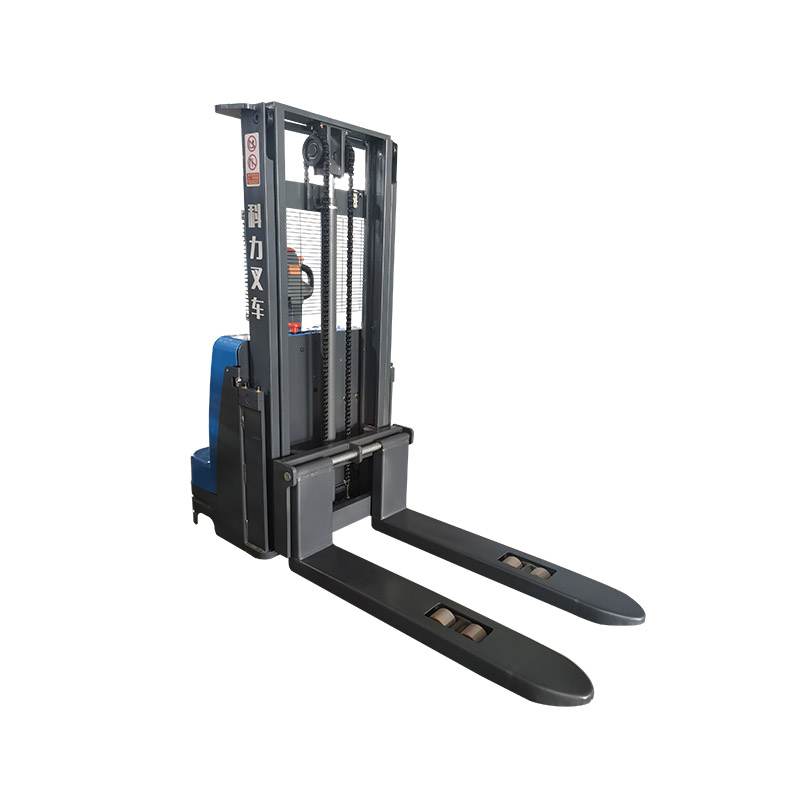

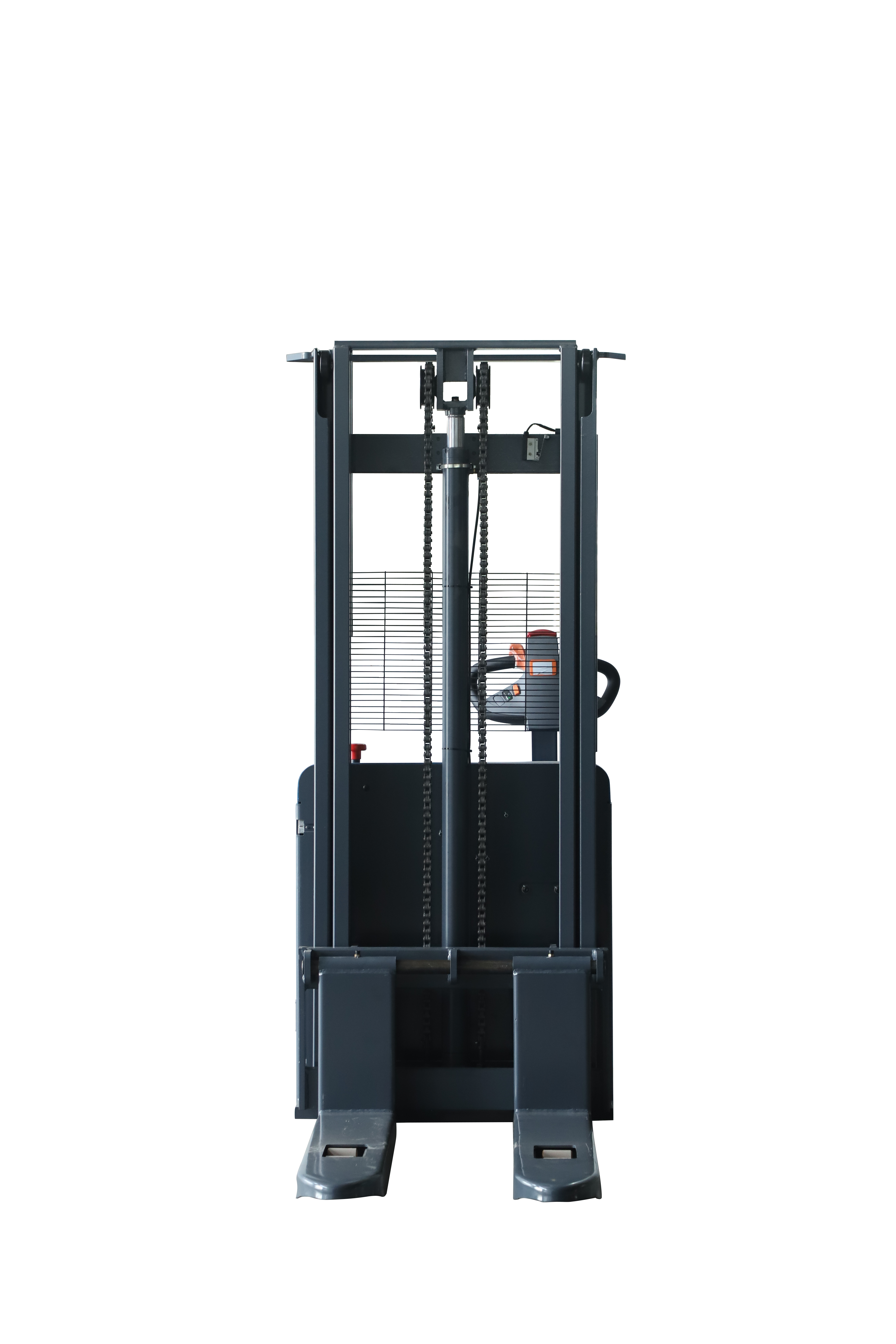

KLD-DD Series 2T 1.6m~3.5m Full electric stacker

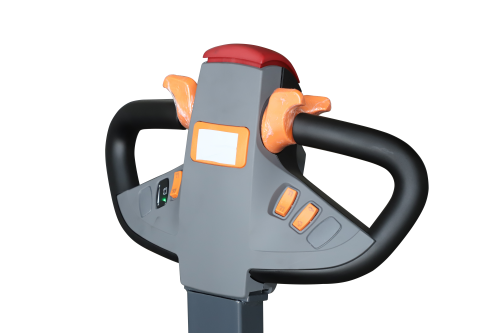

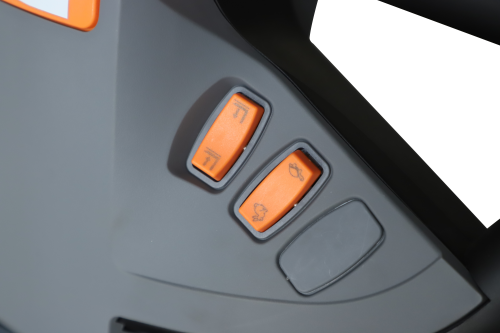

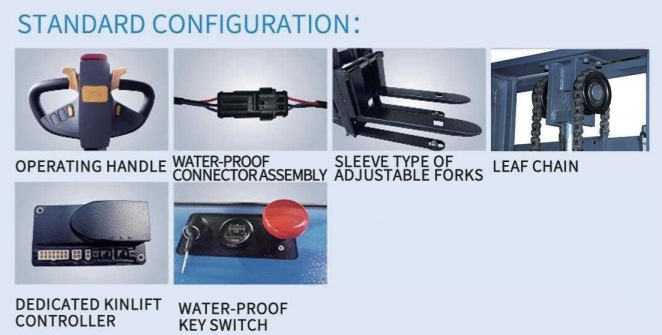

1.Our mechanical turning system is operated effortlessly with the use of an operating handle, providing a user-friendly experience.
2.Equipped with a horizontal drive, our product features a drive wheel that can be easily dismantled and replaced, ensuring convenience and efficiency.
3.The mast of our product is reinforced with precise steel side-rollers, which effectively reduce friction and greatly enhance the stability of the machine.

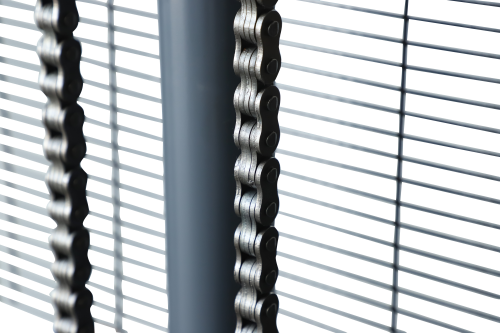

4.We have replaced the traditional roller chain with the national standard 1223 leaf chain, enabling safer lifting operations for goods.
5.The straddle legs are made of solid strap iron, ensuring that they can bear significant force and provide exceptional strength.
6.Our product is configured with a Kinlift dedicated controller, an Albright contactor, and a waterproof connector assembly for the electric power supply of AMP, guaranteeing reliable and safe operation.
7.The stacker is equipped with multifunctional brakes, including a power-off brake of an electromagnetic clutch, a regenerating brake, a reverse brake, and a brake against rolling down on the ramp, ensuring optimal control and safety.
8.The adjustable forks are of sleeve type, providing flexibility and convenience during use.
9.Our product features an automatic power supply cutoff at the top lifting height, adding an extra layer of safety.
10.Additionally, our stacker can implement upright travel at tortoise speed, allowing for precise maneuvering in tight spaces.
1.We offer a special model of refrigerated storage for those who require temperature-controlled storage solutions.
2.Fixed forks can be provided as an optional configuration for customers who prefer a more stable lifting experience.
3.Customers can also opt for wider straddle legs, which can be customized to meet specific requirements.

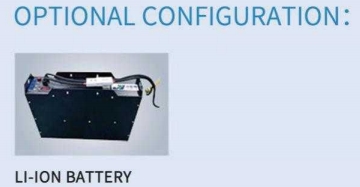

4.Our product is compatible with a union battery, providing an alternative power source for those who prefer it.
Get A Quote
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLD20DD
Performance Maximum load capacity kg 2000
load center Q mm 600
Maximum lifting height H3 mm 1600
Travel speed (without load) km/h 5.2
Travel speed (with load) km/h 4.8
Lifting speed (without load) mm/s 121
Lifting speed (with load) mm/s 81
Lowering speed (without load) mm/s 105
Lowering speed (with load) mm/s 103
Gradeability (without load ) % 4
Gradeability (with load ) % 3
Service Weight (with battery) kg 596
Dimensions Overall length of frame  L mm 1890
Overall length of frame(with platform) mm \
Overall width of frame  B mm 800
Overall height when mast lowerd to lowest H1 mm 2090
Overall height when mast lifted to highest H4 mm 2090
Wheelbase Y mm 1243
Fork length mm 1150
Fork outside width B1 mm 680
Fork inside width B2 mm 300
Fork thickness mm 65
Fork height when fork lowered to lowest mm 90
Min ground clearance mm 15
Theoretical width of minimum  aisle for right-angle  stacking (1200x1000) Asts mm 2330
Minimum turning radius Wa mm 1490
Minimum turning radius (with platform) Wa1 mm \
Tire Front wheel mm 85*70
Drive wheel mm 210*75
Caster wheel mm 130*55
Wheel material polyurethane
Electrical components Drive motor type  DC series motor
Rated output kw 1
Hoist motor type  DC series motor
Rated output kw 2.2
Battery Voltag V 48
Capacity AH 50
Weight kg 15

Mast type Max fork height Mast lowered       Mast extended
Simplex or Duplex mast   (2Stage) 2000 1480 2460
2500 1730 2960
3000 1980 3460
3500 2230 3960
