Electric Counterbalanced Forklift

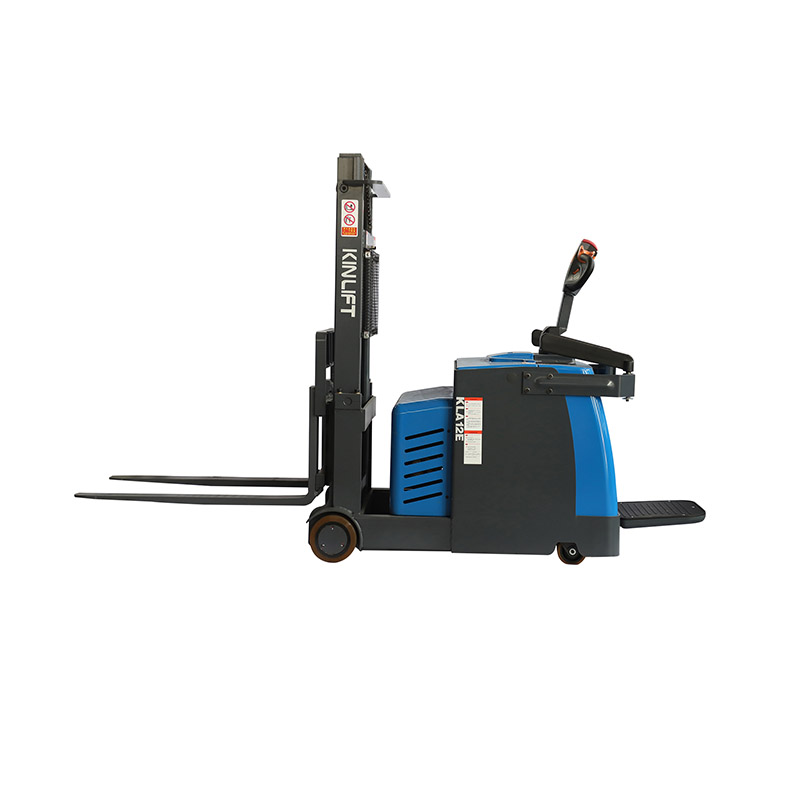

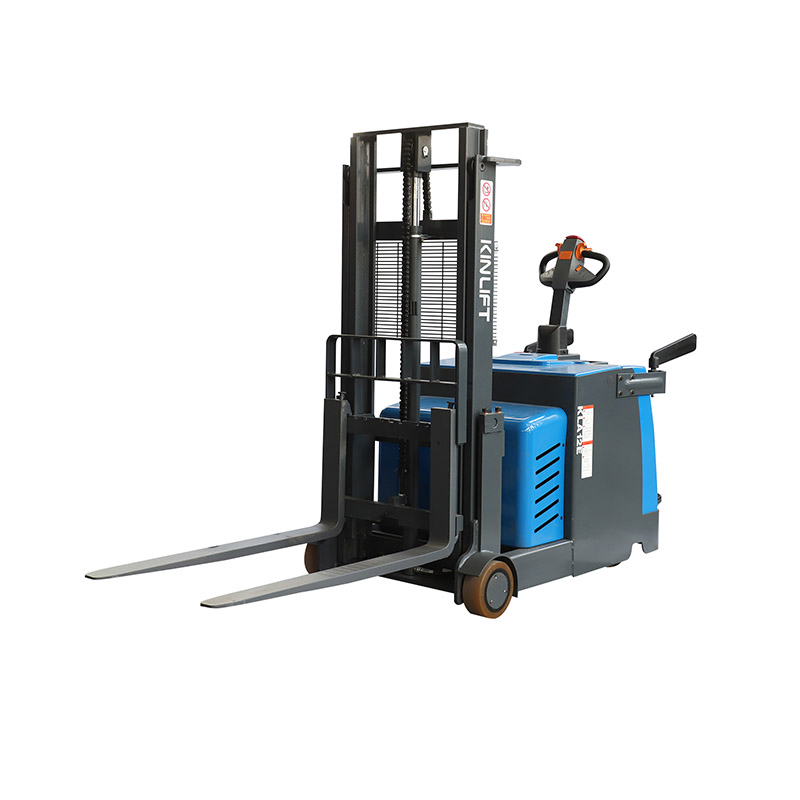

KLA-E Series 0.6T-1.2T 1.6m~4m Short-wheelbase Electric counterbalanced truck

Product Profile
1.The equipment is no straddle legs with counterweight, single-faced and double-faced pallets are both applicable.
2.With Short-wheelbase suits narrow aisle to drive, particularly operates on some building floors.

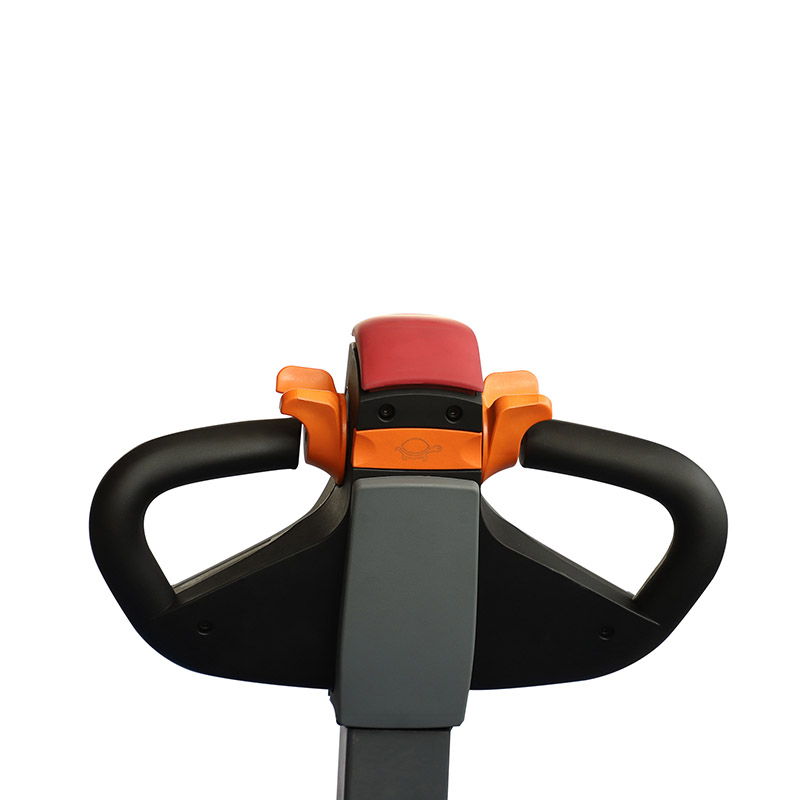

3.It is comfortable and easy to operate by an operating handle.
4.EPS steering system enables the operator steer the vehicle with less force, increasing the sensitivity, improving the performance of steering reversal, so the travel speed slows down automatically as travelling on the curve to make the driving easier and safer.
5.Vertical drive of AC engine is no need carbon brush, having a better start function and regenerating braking function on the ramp, effectively increasing the work efficiency and service duration of electric engine plus more energy-saving.

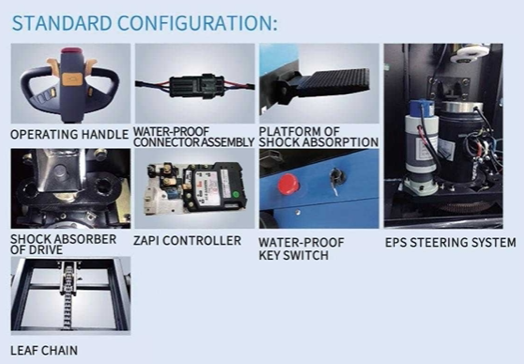

6.The vehicle is configured with main controller of KINLIFT, contactor of ALBRIGHT plus water-proof connector of electric power supply of AMP.
7.Superior passage-ability is achieved by peculiar shock-absorption of drive.

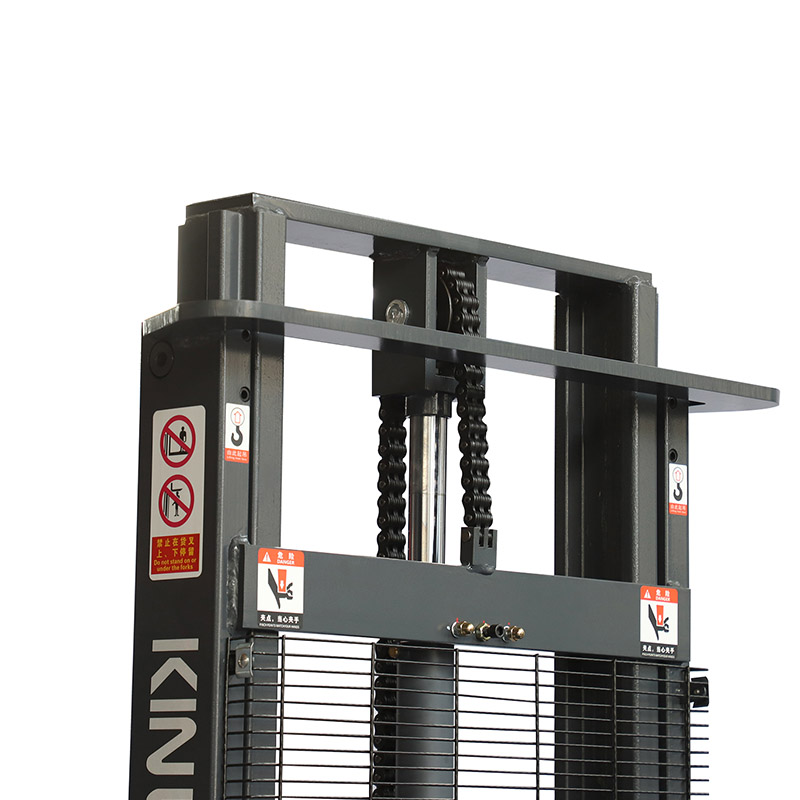

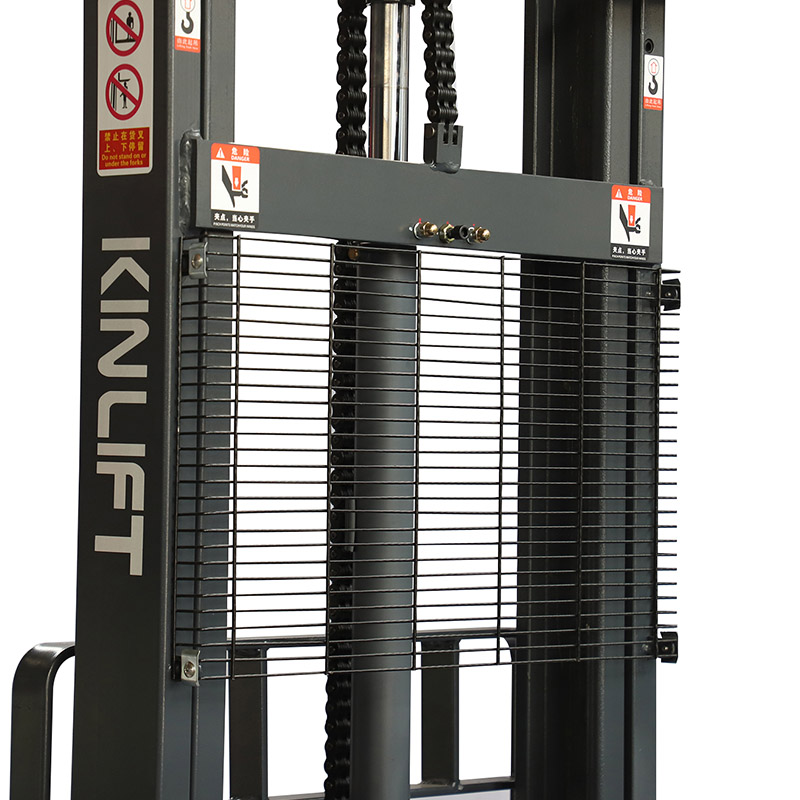

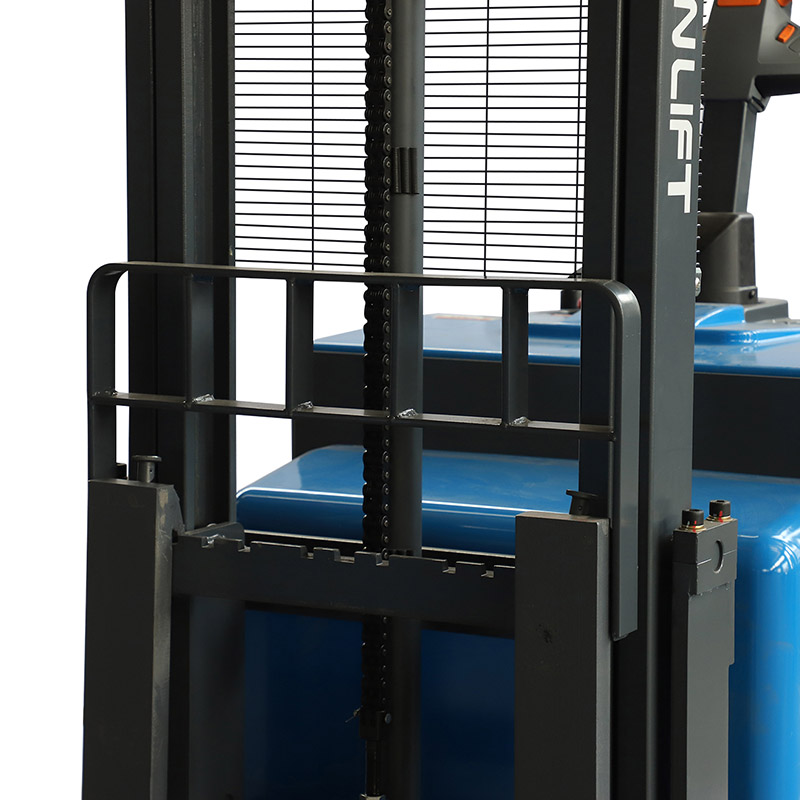

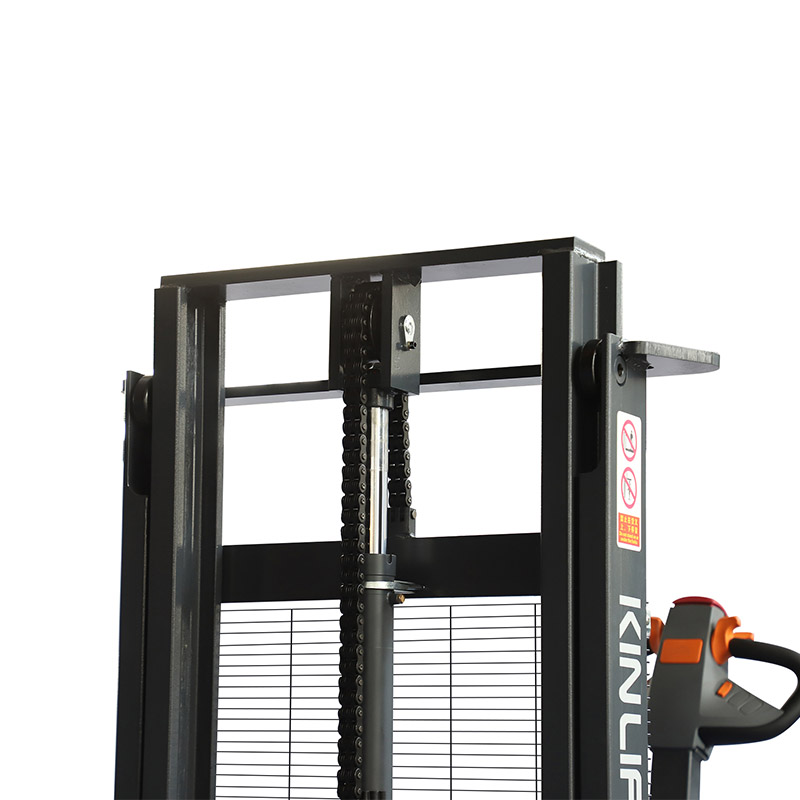

8.Use national standard 1244 leaf chain to replace traditional roller chain and enable the lifting much safer.

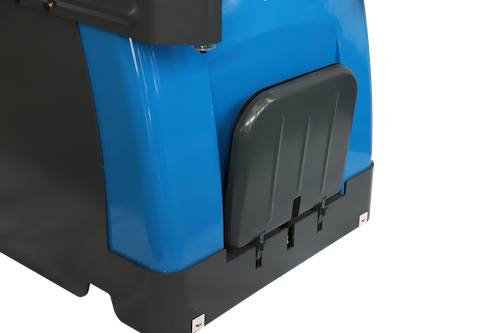

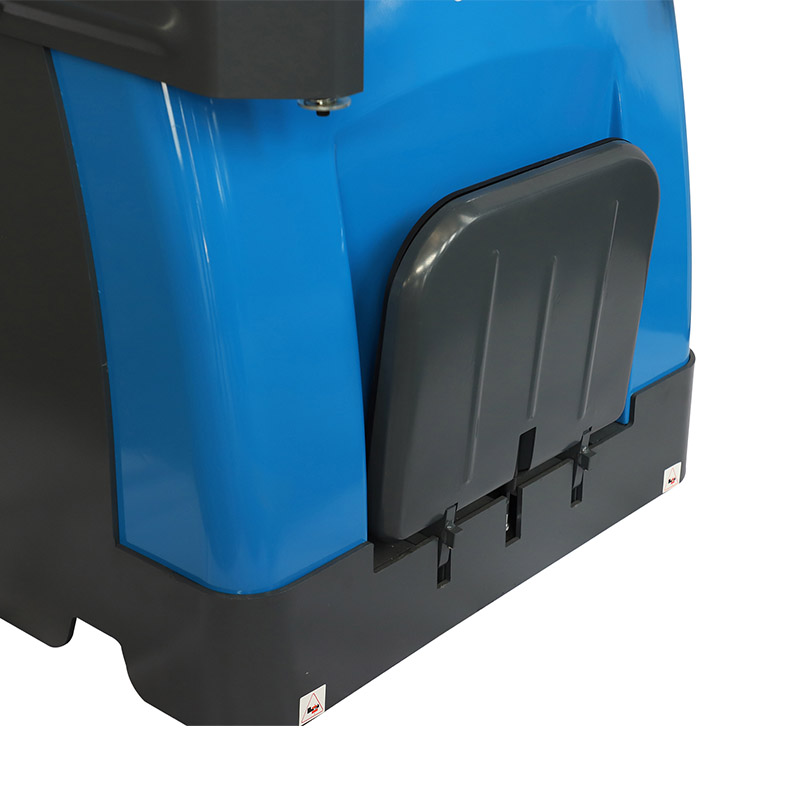

9.Operate on rider platform that is with shock-absorption performance.

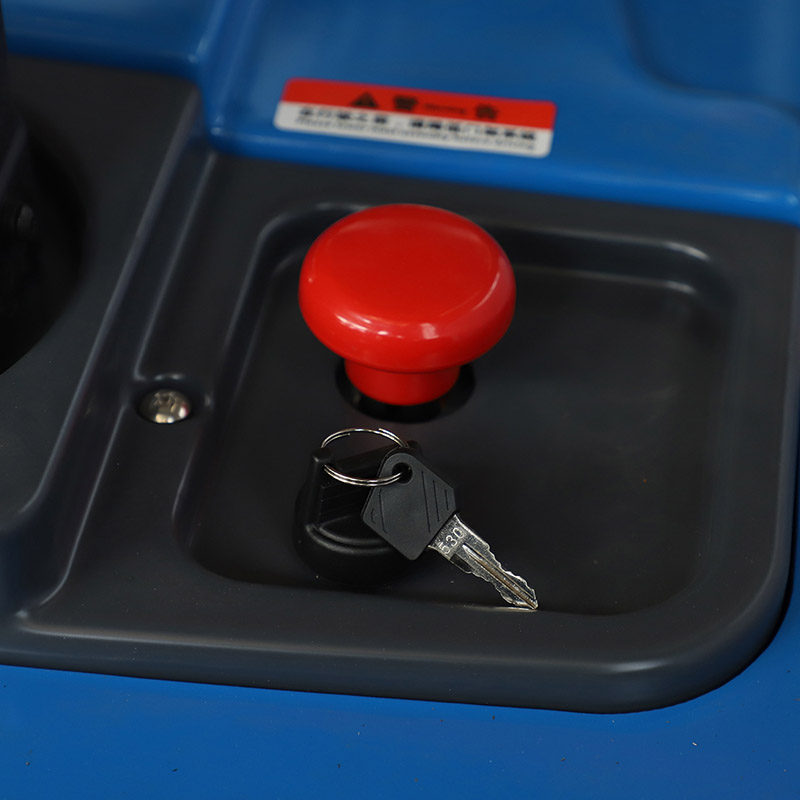

10.Cut off the power supply automatically at the top lifting height.

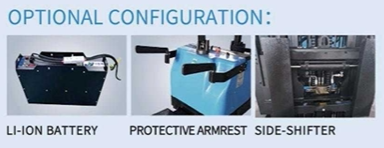

Optional Configuration
1.Special model for a refrigerated storage
2.Imported battery pack
3.High-capacity battery 270 AH/ 300 AH
4.Side-shifter of forks or fork carriage
5.Tilting function of mast

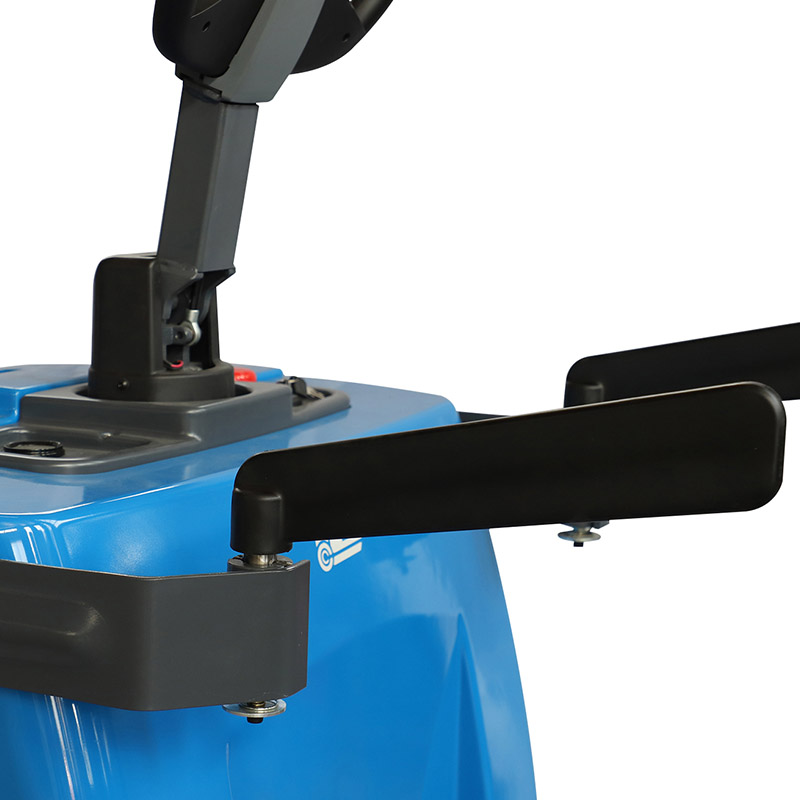

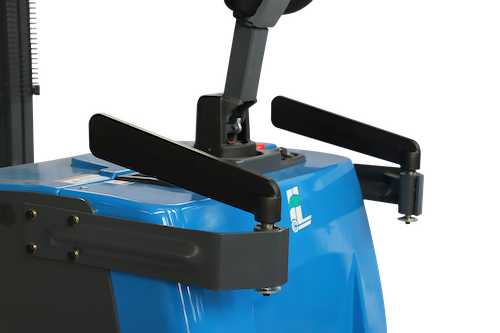

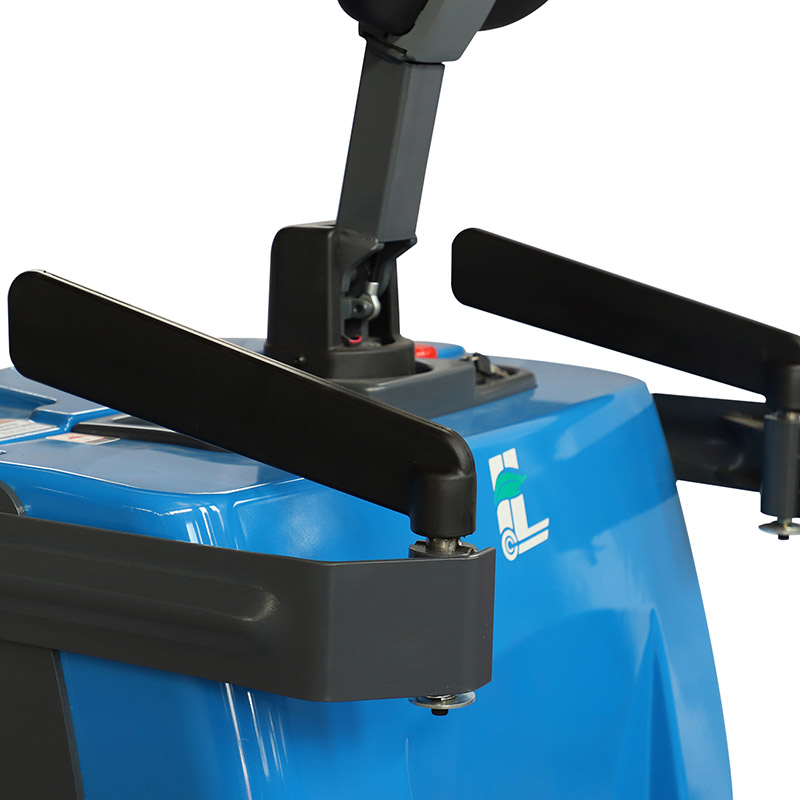

6.Able-dismantled and folded protective armrest
7.Li-on battery
Get A Quote
PREV: No Previous Article
NEXT: KLA-D Series 0.8T-1.2T 2m~3m Three wheel Electric counterbalanced Forklift
  • Product Details
  • Load Chart
  • Video
  • Contact Us
Model KLA06E KLA08E KLA12E
Performance Maximum load capacity kg 600 800 1200
load center Q mm 500 500 500
Maximum lifting height H3 mm 1600 1600 1600
Travel speed (without load) km/h 5.5 5.5 5.5
Travel speed (with load) km/h 5 5 5
Lifting speed (without load) mm/s 121 121 121
Lifting speed (with load) mm/s 81 81 81
lowering  speed(without load) mm/s 105 105 105
Lowering  speed (with load) mm/s 103 103 103
Gradeability (without load ) % 7 7 7
Gradeability (with load ) % 6 6 6
Service weight (with battery)      kg 1495 1707 1712
Dimensions Overall length of frame L mm 2395 2395 2515
Overall length of frame(with platform) mm 2810 2810 2930
Overall width of frame  B mm 940 940 940
Overall height when Mast lowered to lowest H1 mm 2095 2095 2095
Overall height when Mast lifted to highest H4 mm 2366 2366 2366
Wheelbase Y mm 930 930 1050

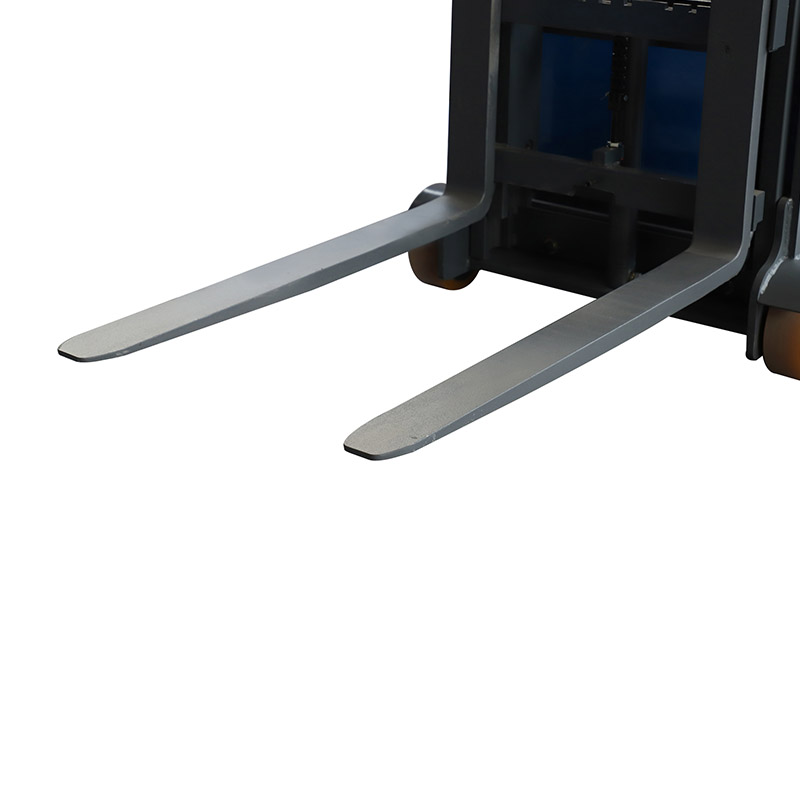

Fork length  mm 1070 1070 1070
Fork spread width mm 210-670 210-670 210-670
Fork width mm 100 100 100
Fork height when fork lowered to lowest S mm 60 60 60
Min ground clearance  mm 55 55 55
Theoretical width of minimum  aisle for right-angle  stacking （1200x1000） Asts mm 2498 2498 2615
Minimum turning radius (without platform)） Wa mm 1147 1147 1260
Minimum turning radius (with platform) Wa1 mm 1625 1625 1740
Tyre Front wheel mm 210*85 210*85 210*85
Drive wheel mm 230*75 230*75 230*75
Caster wheel mm 130*55 130*55 130*55
Wheel material polyurethane
Electrical components Drive motor type  AC series motor
Rated output kw 1.5 1.5 1.5
Hoist motor type DC series motor
Rated output kw 2.2 2.2 2.2
Battery Voltage V 24
Capacity AH 210
Weight kg 195

Mast type     Max fork height Mast lowered       Mast extended
KLA06/08/12E KLA06/08/12E KLA06/08/12E
Simplex or Duplex mast   (2Stage) 2000 1485 2766
2500 1735 3266
3000 1985 3766
3500 2235 4266
4000 2485 4766
