KLT-D Series 2ton-3ton Electric Pallet Truck

Brief Introduction of Product:
In the modern age of industrial equipment and warehousing operations, electric pallet trucks are quickly becoming a popular choice for businesses. An electric pallet truck is an efficient handling device that is designed to move goods on a warehouse floor. These devices are capable of lifting, lowering, and transporting palletized materials from one location to another with minimal effort and time investment from the operator.
Optional Configuration:
◎  Special model of refrigerated storage
◎  Fixed goods forks
◎  Wider straddle legs customized
Get A Quote
  • Product Details
  • Video
  • Contact Us
Model KLT30D
Performance Maximum load capacity kg 3000
load center Q mm 600
Maximum lifting height H3 mm 120
Travel speed (without load) km/h 5.5
Travel speed (with load) km/h 5
Lifting speed (without load) mm/s 25
Lifting speed (with load) mm/s 20
Lowering speed (without load) mm/s 25
Lowering speed (with load) mm/s 40
Gradeability (without load ) % 5
Gradeability (with load ) % 3
Service Weight (with battery) kg 655
Dimensions Overall length of frame L mm 1995

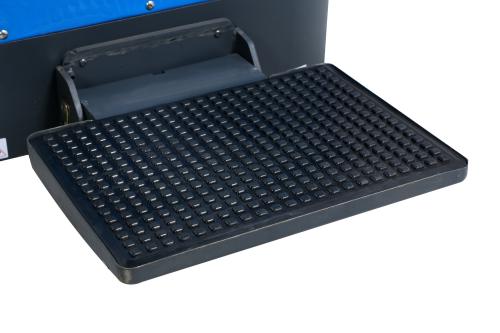

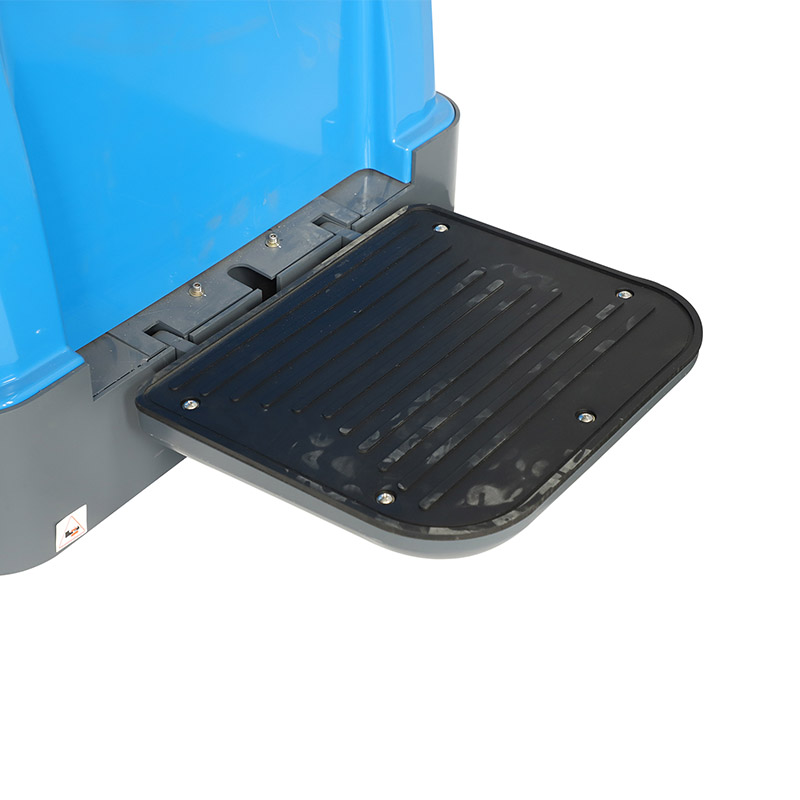

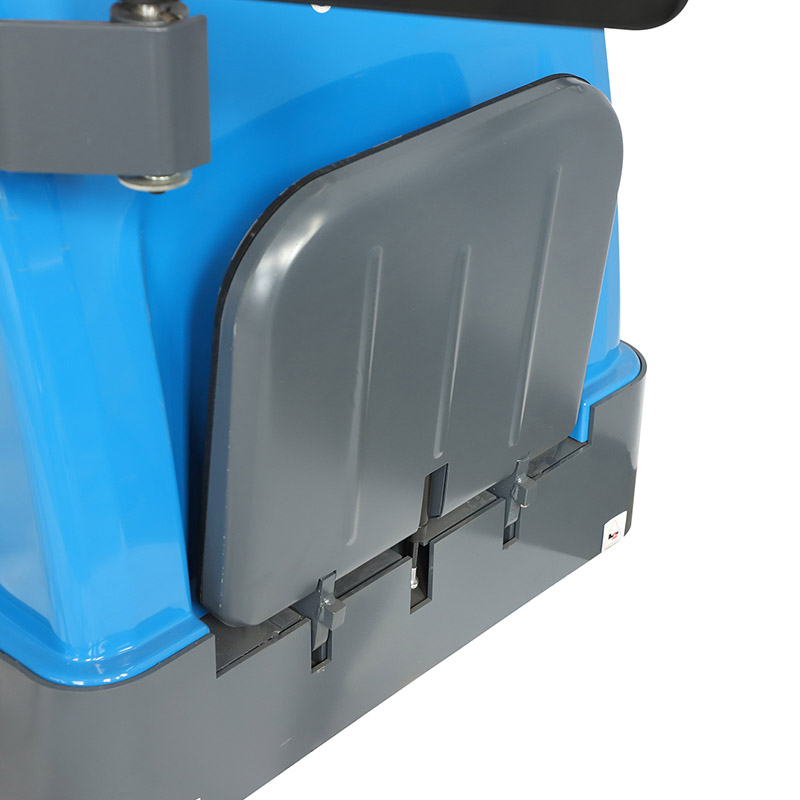

Overall length of frame(with platform) mm 2414
Overall width of frame B mm 782
Wheelbase Y mm 1465

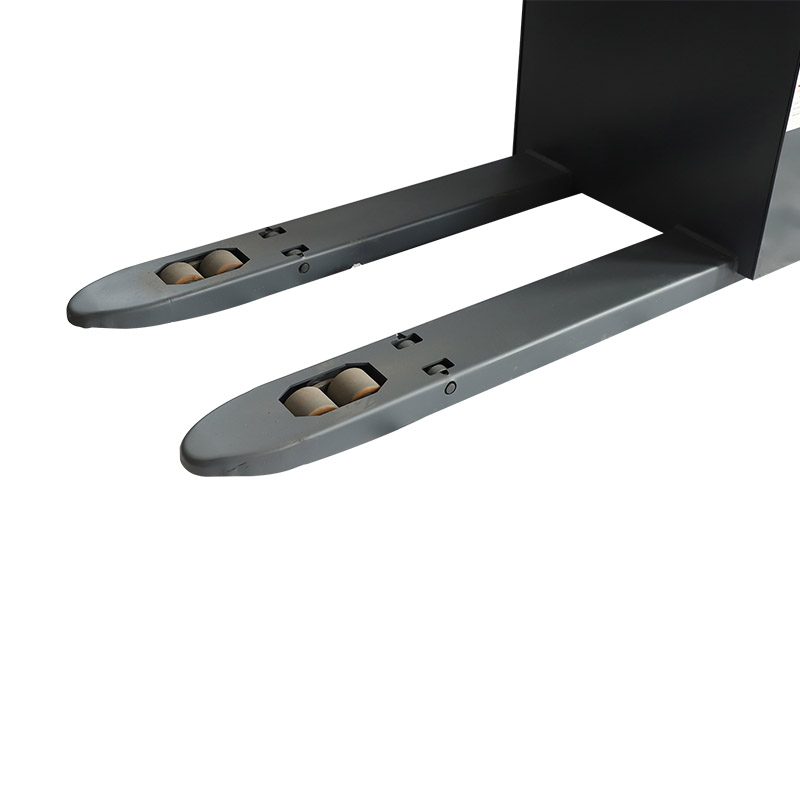

Fork length mm 1150
Fork outside width B1 mm 680
Fork inside width B2 mm 340
Fork thickness mm 65
Fork height when fork lowered to lowest S mm 85
Min ground clearance mm 5
Theoretical width of minimum aisle for right-angle stacking (1200x1000) Asts mm 2360
Minimum turning radius (without platform) Wa mm 1770
Minimum turning radius (with platform) Wa1 mm 2170

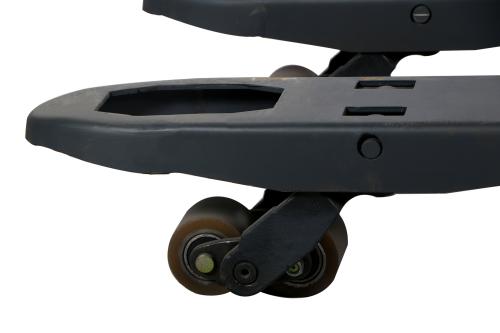

Tire Front wheel mm 85*70
Drive wheel mm 250*80
Caster wheel mm 130*55
Wheel material polyurethane)
Electrical components Drive motor type AC series motor
Rated output kw 1.5
Hoist motor type DC series motor
Rated output kw 1.2

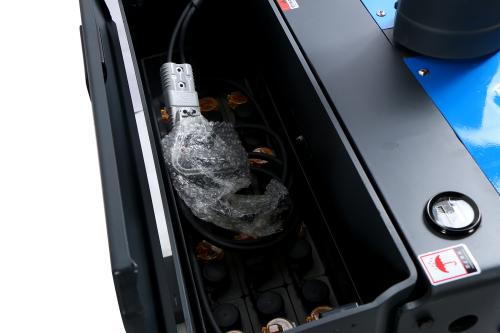

Battery    Voltage V 24
Capacity AH 160
Weight kg 150
