Electric Tow Tractor

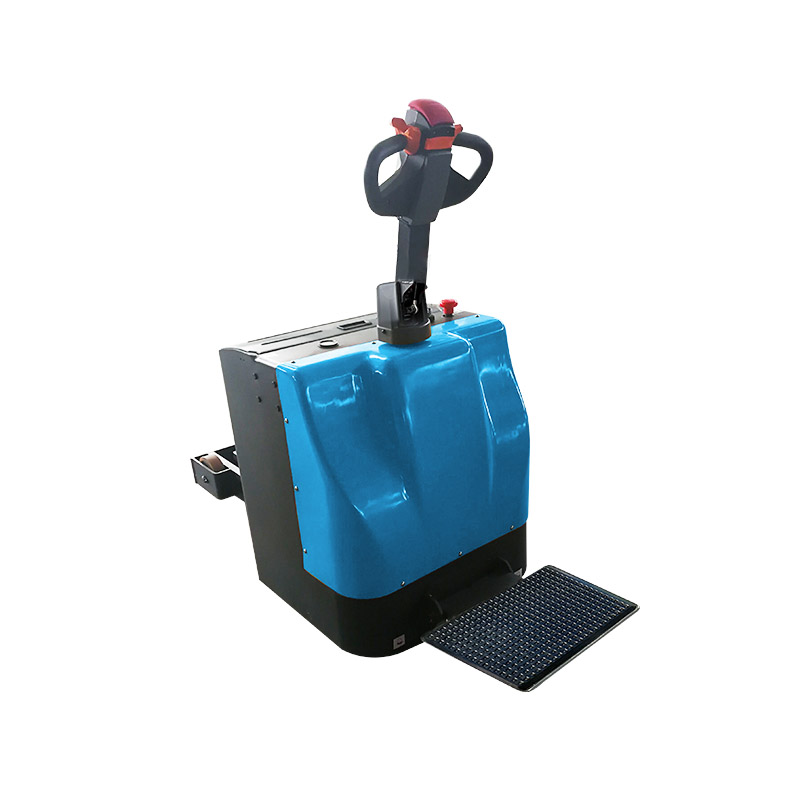

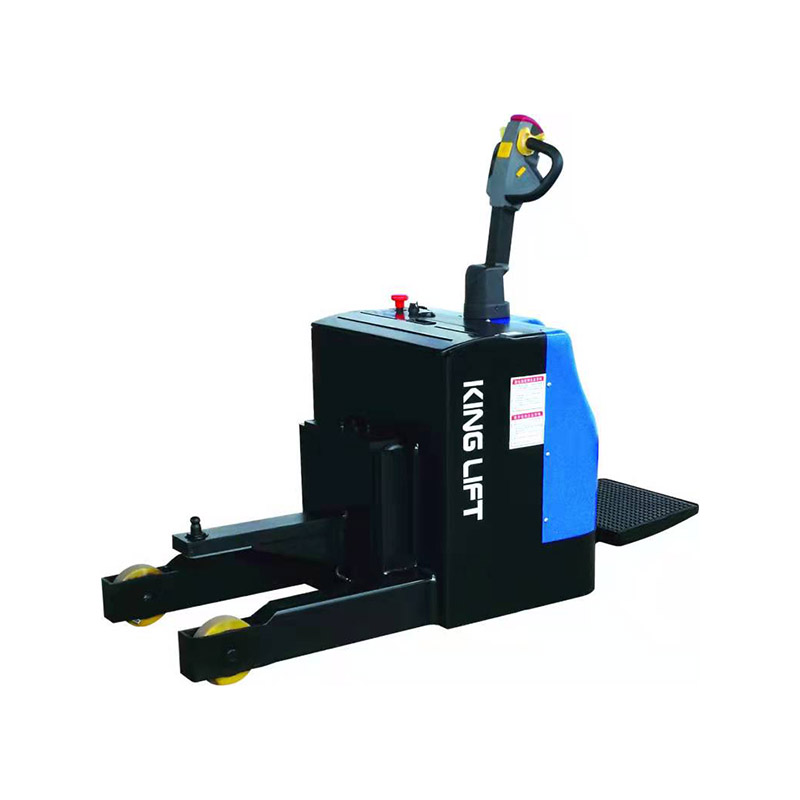

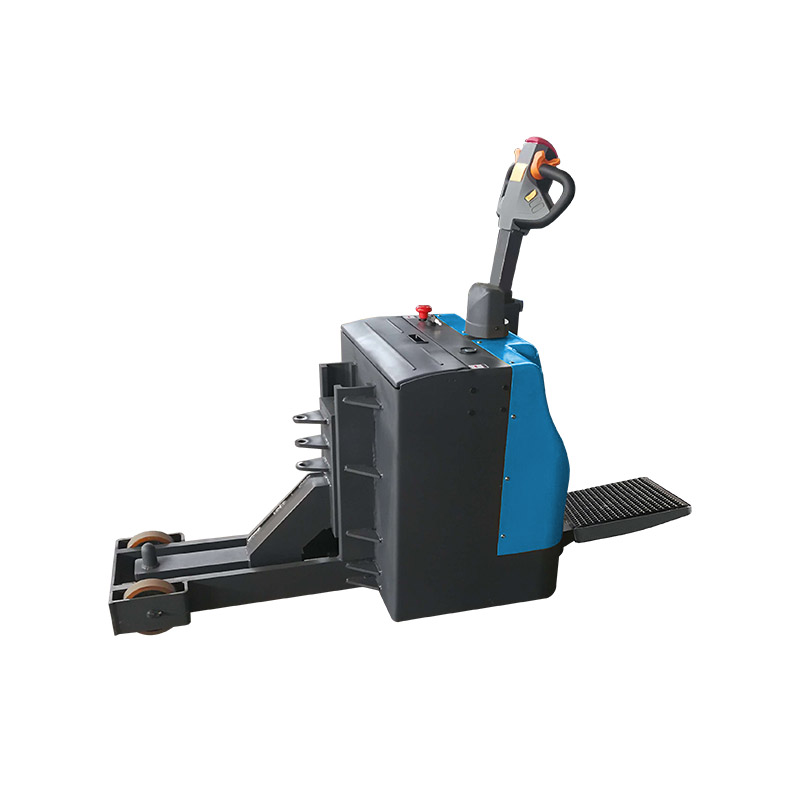

KLB Series 2-5T Electric Handle-operated Tow Tractors

01 Product Profile
Electric Handle-operated Tow Tractor: A Comprehensive Overview
In the forklift industry, the Electric Handle-operated Tow Tractor is a highly efficient and versatile self-propelled power machine. It is specifically designed to effortlessly pull and maneuver various working machinery, making it indispensable for a wide range of mobile operations. Moreover, it can also serve as a reliable fixed operating power.
The Electric Handle-operated Tow Tractor is equipped with a multitude of systems and devices that ensure optimal performance. These include an advanced engine, transmission, walking and steering mechanisms, hydraulic suspension, power output, electrical instrumentation, driving control, and traction features. Depending on the specific requirements, this tractor can be classified into wheel type, crawler type, boat-shaped tractor, and self-propelled chassis.
Key Features and Benefits:
◎Enhanced Operator Comfort: The ergonomic design of the operating handle ensures a comfortable and user-friendly experience for operators.
◎EPS Steering System: This system enables operators to steer the tractor effortlessly, requiring less force while increasing sensitivity. It significantly improves steering performance, especially during reversals. Additionally, the tractor automatically slows down when navigating curves, ensuring safer and smoother driving.
◎AC Engine with Vertical Drive: The AC engine is brushless, resulting in better starting capabilities and regenerative braking functions on ramps. As a result, the work efficiency and service life of the electric engine are significantly increased, leading to greater energy savings.
◎Reliable Components: The vehicle is equipped with high-quality components, including a main controller from Curtis, an ALBRIGHT contactor, and a water-proof connector assembly for electric power supply from AMP. This ensures the durability and reliability of the tractor.
◎Safety Measures: The tractor comes with a warning flash lamp, further enhancing safety during operations.
◎Comfortable Operation: The inclusion of an armrest and adjustable backrest ensures comfortable operation for the operator.
◎High Load Capacity: The Electric Handle-operated Tow Tractor can handle impressive load capacities of up to 4 or 5 tonnes, thanks to its powerful 3 KW drive system.
Optional Configurations:
Special Forklifts for Refrigerated Storage: This configuration is specifically designed to meet the unique requirements of refrigerated storage facilities.
Imported Battery: Customers have the option to choose an imported battery, further enhancing performance and reliability.
High-Capacity Battery: For those seeking extended operating durations, a high-capacity battery with 300 AH is available.
Li-ion Battery: The tractor can also be equipped with a Li-ion battery for enhanced energy efficiency.
Choose Kinlift Pallet Trucks:
As one of the leading manufacturers and suppliers of Electric Handle-operated Tow Tractors, Kinlift Pallet Trucks has established a strong reputation for delivering superior quality products. Our tractors have been certified by the country, ensuring their reliability and performance. Furthermore, our competitive pricing makes us the preferred choice for customers worldwide.
Our commitment to customer satisfaction is unwavering, and we strive to provide products and services of the highest quality. At Kinlift Pallet Trucks, our guiding principle is to achieve win-win goals with our customers by prioritizing good faith, quality, and exceptional service. Contact us today to book your Electric Handle-operated Tow Tractors.
Get A Quote
  • Product Details
  • Video
  • Contact Us

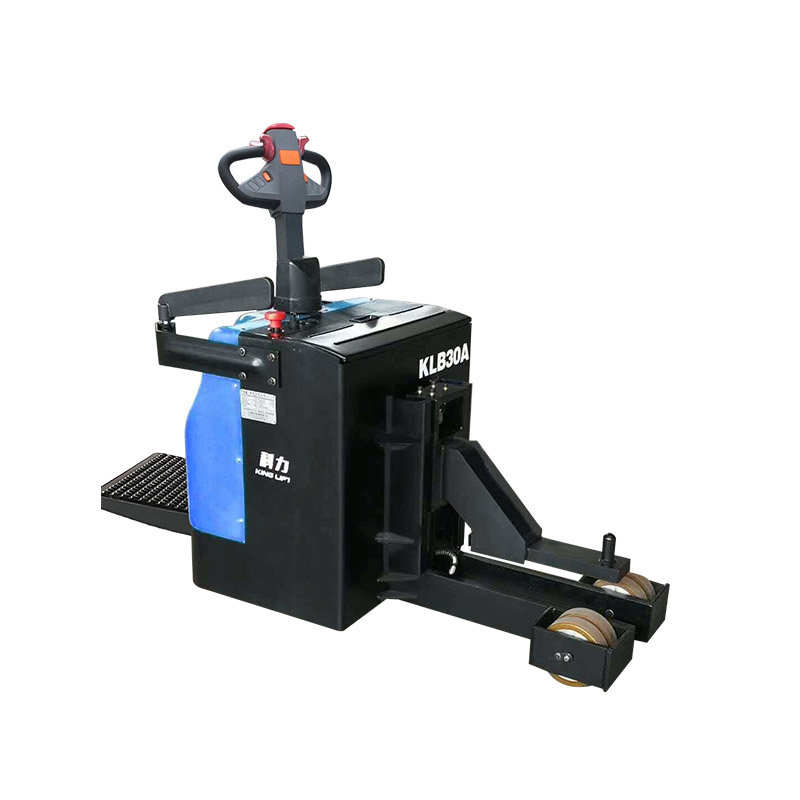

Performance Mode KLB30B
Maximum load capacity kg 3000
Maximum lifting height H1 mm 280
Service Weight (with battery) kg 670
Dimensions Overall length of frame L mm 1467
Overall width of frame B mm 735
Handle height H mm 1410
Min ground clearance S mm 30
Wheelbase Y mm 1145
Minimum turning radius (without platform) Wa mm 1370
Minimum turning radius (with platform) Wa1 mm 1880
Tire Front wheel mm 180*55
Drive wheel mm 230*75
Caster wheel mm 130*55
Wheel material Polyure thane
Electrical components Drive motor type  AC series motor
Rated output kw 1.5
Battery Voltage  V 24
Capacity AH 210
Weight kg 195
